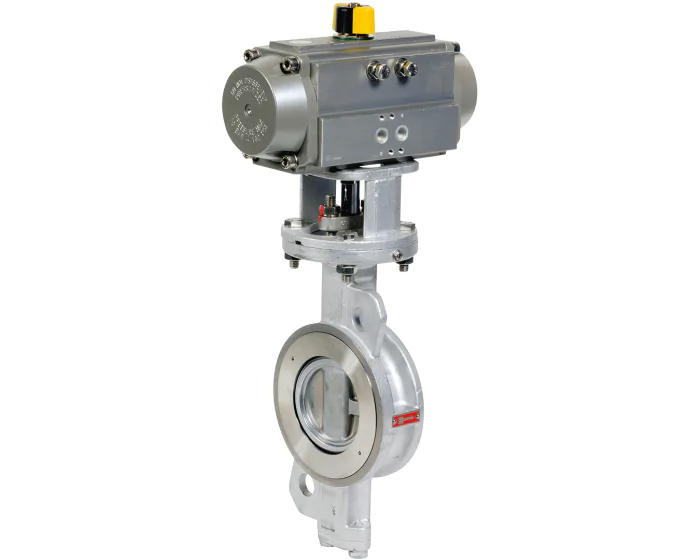

The 1115 double offset butterfly valve has a carbon steel body, a CF8M (1.4408) stainless steel disc and a PTFE/graphite seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 20 bar, TS: 210°C. Mounting between flanges ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN50 - 2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Connections | Between flanges #150 PN20 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260910017008R | S1000787 |
€615.26
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' | 260910017109R | S1000788 |
€721.34
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260911017008R | S1000789 |
€615.26
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 | 260911017109R | S1000790 |
€721.34
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260912017008R | S1000791 |
€813.96
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' | 260912017110R | S1000792 |
€999.60
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260913017009R | S1000793 |
€956.81
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' | 260913017111R | S1000794 |
€1,219.96
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260914017010R | S1000795 |
€1,086.61
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' | 260914017112R | S1000796 |
€1,410.01
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260915017011R | S1000797 |
€1,390.96
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' | 260915017113R | S1000798 |
€1,849.17
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260916017012R | S1000799 |
€2,272.04
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' | 260916017114R | S1000800 |
€2,762.79
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260917017012R | S1000801 |
€3,578.06
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN250 - 10'' | 260917017115R | S1000802 |
€4,907.59
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260918017013R | S1000803 |
€3,608.84
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Carbon steel A216 WCB (1.0619) Double offset DN300 - 12'' | 260918017116R | S1000804 |
€5,099.27
(excl. btw)
|
add to cart |
